Elevators

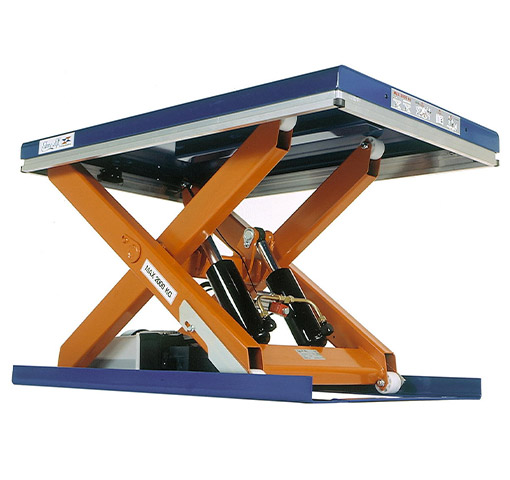

HYDRAULIC ELEVATOR
- Abolition of the superstructure machine room which allows better utilization of the built space and saving construction cost.
- Low installation and reduced maintenance cost.
- Longer useful life because the lift’s system function in hydraulic oil.
- The possibility of emergency lowering if the electricity is interrupted.
- Single time 3 phase power used in up – direction only.
- Safety, comfort and low noise levels.

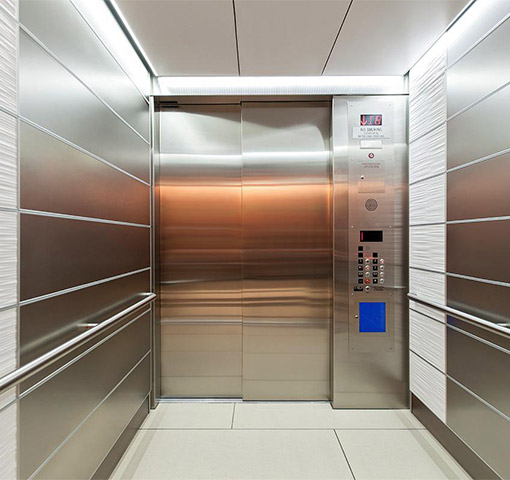

HOSPITAL ELEVATOR
- M.S. or stainless steel lift cabin
- Jerk less starting & stopping are admired irrespective of load precise leveling accuracy
- Power coated M.S. auto doors a stainless steel doors with best door drive in the lift cabin and with Microwave photocell/safety pads for door operation
- Most modern types touch button panel
- Variable voltage frequency inverter (V3F) drive
- Emergency locking device for manually opening at landing doors.
- Automatic announcing audio system of welcome note, floor indication & thanks note.

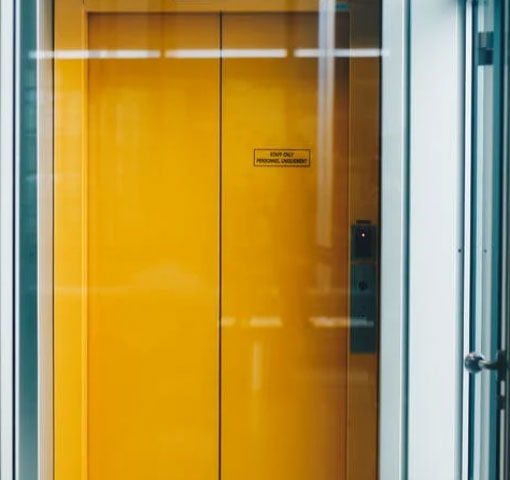

MANUAL PASSENGER ELEVATOR
- M.S./Wooden cabin with PVC flooring and fall ceiling
- Electronic digital display floor position indicators system in car enclosure & at all landings.
- Emer locking device for manually opening at land
- Computerized microprocessor based controller with fully collective/selective system in dust prof M.S. cabinet. door.
FEATURES
| Machine : | Geared or Gaerless-fitted in the Machine Room on I-Beams. |
| Normal Loads: | 4 Passenge(272 Kgs.) to 26 Passenge(1768 Kgs.) |
| Speed: | Low Rise: (Up to 6 floors)-0.65 to 1.0 meter/second |
| Mid Rise: | (Up to 12 floor)-1.0 to 1.6 meter/second |
| High Rise: | (12 floor & Higher)-1.6 meter/second |
| Contorl Unit: | Misroprocessor based contorl unit is fitted in the Machine Room. |
| Drive: | Varible voltage variable Frequency drive fitted in the control unit with open & closed loop operation |
| Doors: | Automatic Center/ Telescopic door or Manual Imperforate and Telescopic doors. |
| Load | Car Inside | lift Well | Entance | Clear Opening for Door frame | Door Frame Height-G | ||||
| Perons | Kg | A | B | C | D | E | F | Standard | Roping Type |
| 4 | 272 | 900 | 900 | 1400 | 1500 | 700(Min.) | 1175 | 2290 | 2350 |
| 6 | 408 | 1000 | 1100 | 1500 | 1700 | 700(Min.) | 1175 | 2290 | 2350 |
| 8 | 544 | 1300 | 1100 | 1900 | 1700 | 800 | 1275 | 2290 | 2350 |
| 10 | 680 | 1300 | 1350 | 1900 | 1950 | 800 | 1275 | 2290 | 2350 |
| 13 | 884 | 2000 | 1100 | 2500 | 1700 | 900 | 1350 | 2290 | 2350 |

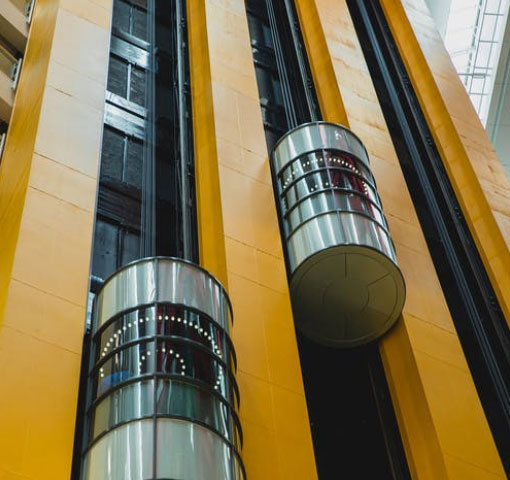

CAPSULE ELEVATOR
- Stainless steel cabin with safety bar & view of glass
- Doors with best door drive in the lift cage & microwave photocell for safe door operation
- Electronic digital display floor indicator with push button at landings & cage
- Emergency locking device for manually opening of landing doors
- Computerized microprocessor collective/selective system control panel in dust proof M.S. cabinet
- Variable voltage frequency inverter (V3F) drive

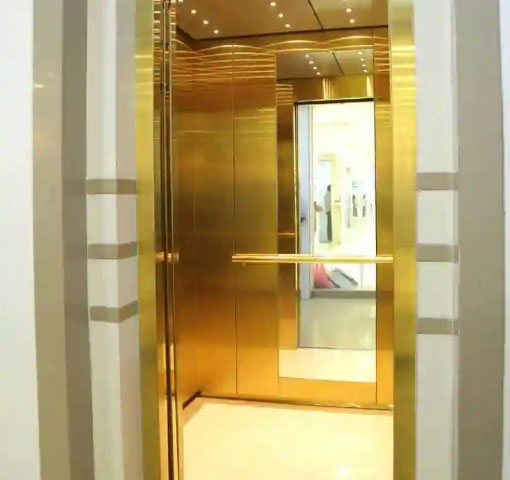

AUTOMATIC PASSENGER ELEVATOR
- M.S. or stainless steel lift cabin
- Power coated M.S. auto doors with best door drive in the life cabin and with microwave photocell/safety pads for door operation
- Most modern types touch button panel
- Emergency locking device for manually opening at landing doors
- Automatic announcing audio system of welcome note, floor indication & thanks note

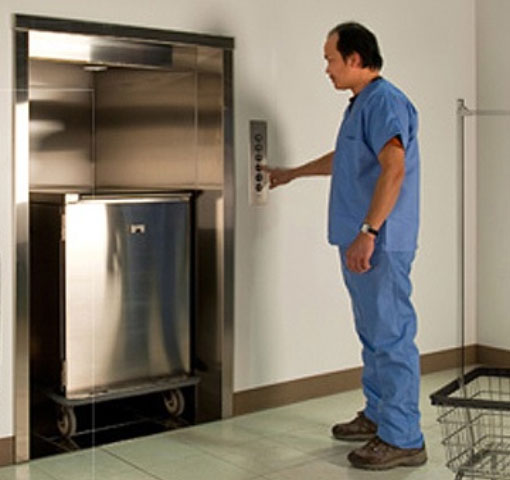

DUMB WAITER ELEVATOR
- Easy installation & latest mechanism in dumbwaiter ensures long life & trouble free operation
- Specially designed for different purposes in hotels, restaurants, offices, clubs, schools, hospital, banks, laboratories etc.

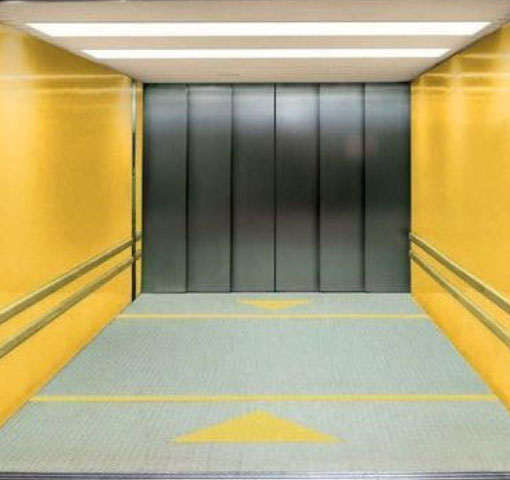

FREIGHT ELEVATOR
- Powder coated M.S. or Aluminum checker plate flooring Up & Down moving level maintaining inching system
- Computerized microprocessor based controller with fully collective/selective system in dust proof M.S. box
- Electronic digital display floor indicator with push button at all landing door
